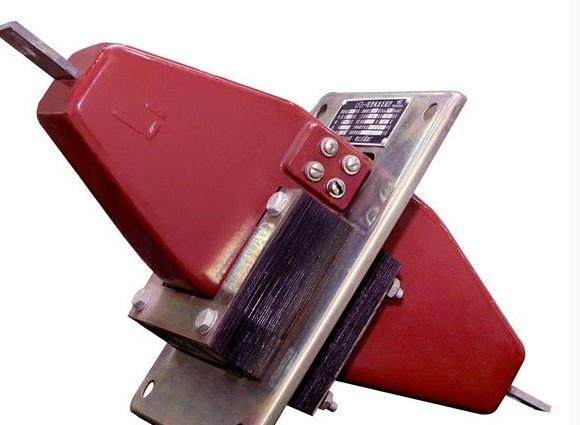

LFZ1-10 Casting Resin Indoor High Voltage Current Transformer

Division according to use conditions

In-house voltage transformer: installed in indoor distribution equipment, generally used at and below voltage level;
Home external voltage transformer: installed in the outdoor distribution device, mostly used and above voltage level.

According to the ground running state of primary winding

The voltage Transformer of primary winding grounding: the end of the primary winding of the single phase voltage Transformer or the neutral point of the primary winding of the three phase voltage Transformer is directly grounded;
The UnGrounded voltage Transformer of primary winding: Both ends of primary winding of single phase voltage transformer are insulated to the ground. All parts of the primary winding of the three-phase voltage transformer, including the terminal, are insulated to the ground and the insulation level is consistent with the rated insulation level.

Divide by Magnetic Route Structure

Single-stage voltage transformer: primary winding and secondary winding(as required, multiple secondary windings can be set up on an iron core, the iron core is ground potential. In our country, the single-stage mode is used at and below the voltage level.
Serial voltage transformer: The primary winding is separated into several cells with the same number of turns, each with its own independent iron core, with multiple iron cores, and a secondary winding with high voltage. This type of structure is commonly used in our country in voltage grade.
Combination Transformer: The transformer combined by voltage Transformer and current Transformer group is called combination Transformer.

        Wenzhou Qiupu Electric Power Co., Ltd. is located in Yueqing Economic Development Zone, Zhejiang Province. It is a high-tech enterprise specializing in the research and development, production and sales of electric power products such as circuit breakers, transformers, power distribution switches and high and low voltage electrics. Our products are widely used in financial, communications, municipal, transportation, power, construction, aerospace, industrial control and other important areas, has won the majority of users praise and signed a long-term cooperation agreement.
        As an innovative technology-based enterprises, the company has strong technical force and the world's leading production technology and high-end testing equipment, and establish and improve the procurement of components, product processing assembly, testing, packaging to sell a complete set Quality management system to ensure that every product of the eligibility, the company has 10 years of experience in the power industry, and is still growing, product and sales network throughout the country.
