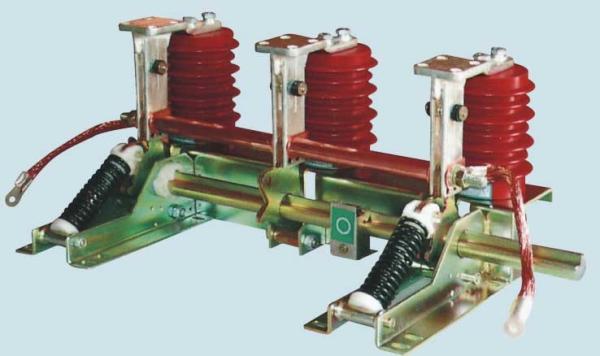

JN15-12/31.5kA-210 Earthing Switch with High Voltage Switchgear
1. JN15-12 Indoor High Voltage Eartihng switch's performance is fit
the bill GB1985-89< AC voltage load brekaer switch and earthing
switch > and IEC129 .
2. Lend itself to 12kV voltage 50HZ power system .
3. Fit with so many types high voltage switchgear equipments , use
to protect epuipment .
4. Simple structure , easy to install .
5. Altitude is after 1000M .
6. Temperature is from 400 degree to -100 degree .
7. Fast close and open opration .
8. Can be stocked in 300 degree .
| Item | Technical data |
| Rated voltage (KV) | | | 12 | | |
| Rated frequency(Hz) | 50 |
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | | | 42 | | |
| Frequency withstand voltage 1 min (V) | 2000 |
| Lighting impulse withstand voltage (KV) | | | 75 | | |
| Sapce distance | 150MM-210MM |
| Closing time | 4 S |
| |
(Compared with the permanent magnetic type, which is mainly the
control and operation mechanism, the fixed seal type is the
projectile type, and the permanent magnetic type is the controller)
The whole cabinet is called the armor type moving medium metal
closure switch equipment, which is divided into three layers, the
upper layer is the bus and the instrument panel(separate), the
middle layer is the circuit breaker room and the lower layer is the
cable room. Because the circuit breaker has been in the middle, so
called the armor type to move the type of metal closure switch
equipment, short for the cabinet. (2) The central cabinet is a type
of switchgear used by end users. It is fully functional and large
in size, while the ring cabinet is a type of switchgear used to
connect two power sources or parts of a ring network. The main
function is to divide the two sections into two parts. There are
many kinds of lockers, which can be divided into the switchboard,
the measuring cabinet, the transformer cabinet, the change cabinet
used, and so on. The switch in the cabinet may be equipped with an
automatic protection device.
