    Medium Voltage / High Voltage Outdoor Vacuum Circuit Breaker

    Ask Lasest Price
    Brand Name : QIUPU
    Model Number : ZW32-12
    Certification : IEC
    Price :
    Payment Terms : T/T, Western Union
    Supply Ability : 20000PCS/Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    Medium Voltage / High Voltage Outdoor Vacuum Circuit Breaker

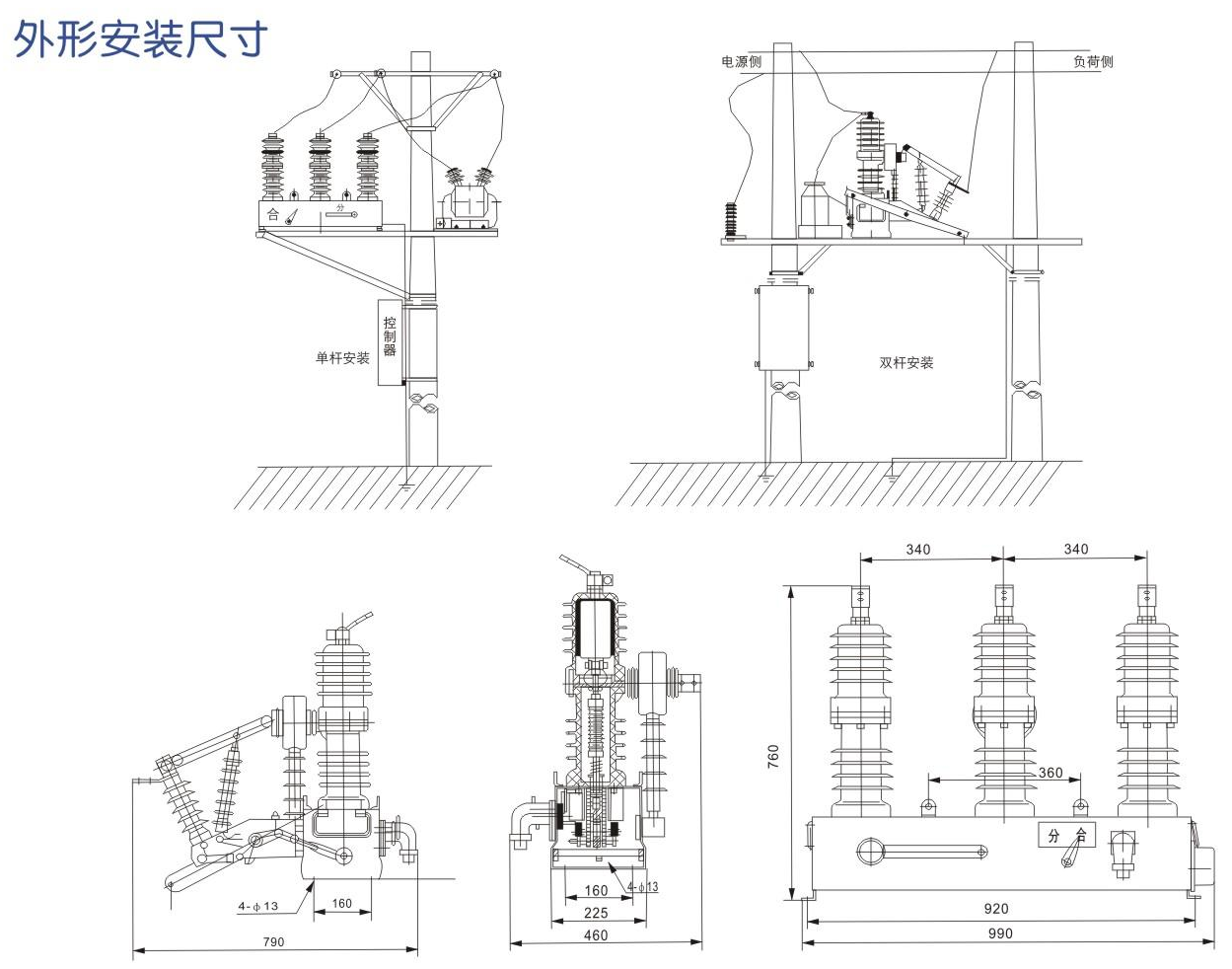

    ZW32-12 Medium Voltage High Voltage Outdoor Vacuum Circuit Breaker


    The circuit breaker adopts a fully closed structure with good sealing performance, which is helpful to improve the moistureproof and anticoagulation properties, especially suitable for use in cold or wet areas.


    The 3, 3-phase pillar and current Transformer adopt imported epoxy resin solid insulation, or use indoor epoxy resin outsourcing silicone rubber solid insulation; It has the characteristics of high and low temperature resistance, UV resistance and aging resistance.
    The operation mechanism adopts a miniature spring operation mechanism, with low power and low energy consumption of power storage motor. The mechanism transmission adopts the real transmission mode, with small number of parts and high reliability. The operation mechanism is placed in a sealed mechanism box, which solves the problem of rust and improves the reliability of the operation mechanism.

    The circuit breaker is generally composed of a contact system, an arc extinguishing system, an operating mechanism, a unbuckling device, and a housing.



    Classification:


    It is divided into high voltage circuit breaker and low voltage circuit breaker according to its use range . A switching device capable of breaking and carrying current under normal loop conditions and of carrying and breaking current under abnormal loop conditions within a specified time.
    It has the function of overload, short circuit and undervoltage protection, and has the ability to protect the line and power supply.


    ItemTechnical data
    Rated voltage (KV)12
    Rated frequency(Hz)50
    Insulator(capacity)insulatingFrequency withstand voltage 5 min (KV)42
    Frequency withstand voltage 1 min (V)2000
    Lighting impulse withstand voltage (KV)75
    Life10000
    Rate Power50Hz
