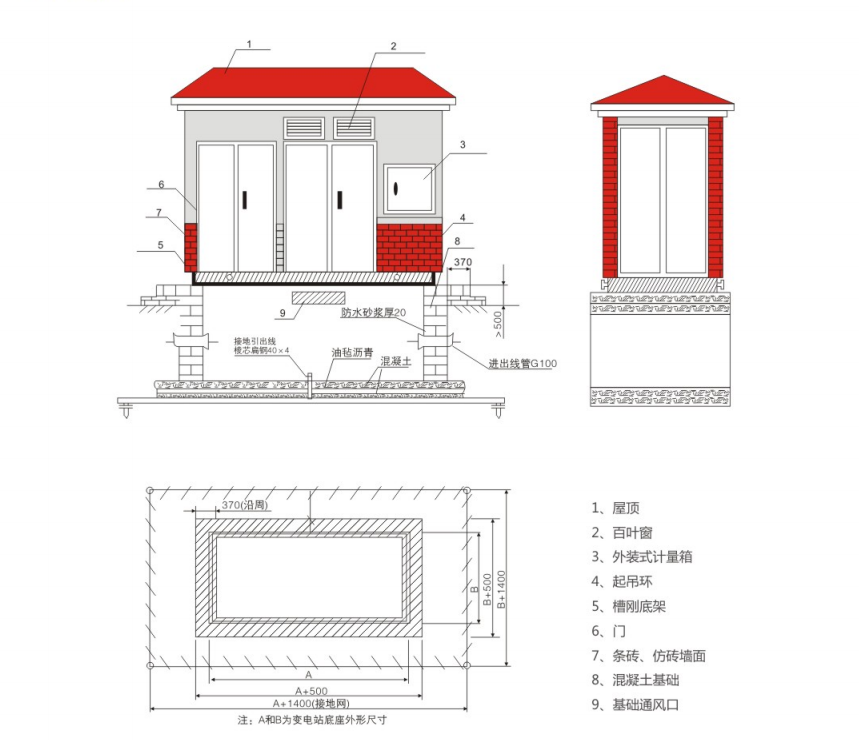

12kV Pre-installed substation With High Voltage and Low Voltage
House Power Sesterm
Description:
11kV switchgear is the latest generation of indoor complete power
distribution equipment with three phase AC 50Hz or 60Hz, 3.6kV to
12kV single busbar section system. It's mainly used in power plant,
substation, industrial and mining factories, as well as high-rise
buildings, for power reception and power distribution, with
functions of controlling, protecting and detecting electric
circuits.
Features:
1. Metal-clad and fully enclosed structure, can prevent dirt and
small animals from entrance.
2. Each small compartment in the switchgear is separated and
independent from each other.
3. Fast closing earthing switch is used for earthing and provides
short-circuit current closing capacity.
Technical parameters:
| Items | Unit | parameter |
| Rate voltage | kV | 11 |
| Rate frequency | Hz | 50 |
| Rated main bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 |
| Rated branching bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 |
| Short-time withstand current(4S) | kV | 20,25,31.5,40 |
| Peak withstand current(peak.) | kV | 50,63,80,100 |
| Rated short drop out current | kV | 20,25,31.5,40 |
| Rated short circuit open and cut(Peak) | kV | 50,63,80,100 |
| Rated insulation level | 1min power frequency
withstand voltage | ph-ph,ph-ground | kV | 25,30,42 |
| breaker gap | kV | 27,34,48 |
| Rated lighting impulse withstand voltage(Peak) | ph-ph,ph-ground | kV | 40,60,75 |
| breaker gap | kV | 46,70,85 |
Switchgear Structure:
1. Switchgear is composed of cubicle and removable parts (so called
trolley). The cubicle is separated into several functional
compartments by metal sheet, including busbar compartment, circuit
breaker compartment, cable compartment and low voltage
2. Switchgear removable parts can be equipped with VCB trolley,
voltage transformer trolley, lightning arrester trolley and fuse
trolley.
3. Pressure relief devices are installed above trolley compartment,
busbar compartment and cable compartment. Special sealing ring on
the door seals the panel door.
4. In case of faults inside the compartments resulting in arc, the
pressure is going up inside the switchgear and the pressure relief
equipped on the top will open automatically, to release pressure
and high temperature gas. In this way, it can ensure the safety of
operating staff and the switchgear.
About Us
Wenzhou Qiupu Electric Power Co., Ltd. is located in Yueqing
Economic Development Zone, Zhejiang Province. It is a high-tech
enterprise specializing in the research and development, production
and sales of electric power products such as circuit breakers,
transformers, power distribution switches and high and low voltage
electrics.
Our products are widely used in financial, communications,
municipal, transportation, power, construction, aerospace,
industrial control and other important areas, has won the majority
of users praise and signed a long-term cooperation agreement.
FAQ
Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and
engineer teams,we can customize products according to customers'
drawing or requirements.
Q2: What's your MOQ?
A2: One Set.
Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about
20-30 days.
Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each
step is in compliance to the standards. At the same time, we will
take photos and shoot video for you if you need.Every product will
be fully assembled and carefully tested before packing and
shipping.
Q5: How long is the warranty?
A5: Within one year from the sale date, if there are any accessory
problems, you just provide the photos of damaged accessory, then we
will provide free accessory. According to the number of products,
we will provide easily damaged accessories for free. We also can
provide technical support if you need.
