GCK Low-voltage withdrawable switchgear
Product description
GCK low-voltage withdrawable switchgear consists of two parts:
power distribution center (PC) cabinet and motor control center
(MCC). It is suitable for power users such as power plants,
substations, industrial and mining enterprises as AC 50Hz, maximum
working voltage to 660V, maximum working In the power distribution
system with current up to 3150A, it is used for power distribution,
motor control and lighting and other power distribution equipment
for power conversion and distribution control.

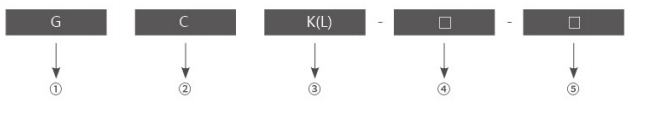

Model and its meaning
① AC enclosed low-voltage switch cabinet
② Withdrawal
③ Usage code: K-control center, L-power
④ Design serial number: 1, 2, 3
⑤ Main circuit plan number
Conditions of Use
• The altitude does not exceed 2000mo
•The ambient air temperature is not higher than +40°C, and the
average temperature within 24h is not higher than +35°C, and the
ambient air temperature is not lower than -50°Co
• Atmospheric conditions: The air is clean, the relative humidity
does not exceed 50% at +40°C, and higher relative humidity is
allowed at lower temperatures, for example: 90% at +20°C. There is
no place with fire, explosion hazard, serious pollution, chemical
corrosion and severe vibration.
• Tilt not more than 5% to the vertical
• This product is suitable for transportation and storage at the
following temperatures: -25°C ~+55°C, within a short period of time
(not more than 24h) not exceeding +70°Co
• If the above conditions of use cannot be met, the user should
propose to our company when ordering, and negotiate a settlement.
Technical Parameters
| name | parameter |
| Rated working frequency (Hz) | 50 |
| Rated working voltage (V) | 380, 660 |
| Rated insulation voltage (V) | 660 |
Rated working current (A) | Horizontal bus | 630-3150 |
| Vertical bus | 600 |
Rated short-time withstand current | Horizontal bus | 80kA(Effective value)/1s |
| Vertical bus | 50kA(Effective value)/1s |
Rated peak withstand current | Horizontal bus | 176kA/0.1s |
| Vertical bus | 110kA/0.1s |
| Main circuit connector (A) | 200, 400 |
| Auxiliary circuit connector (A) | 10 |
| Power frequency withstand voltage for 1 minute (V) | 2500 |
| Protection level | IP40 |
| Operation method | On the spot, far away, automatically |
Installation dimension drawing
Need to know when ordering
The following technical information should be provided when
ordering:
• Primary circuit plan number, equipment model, capacity and
single-line system diagram;
• If the secondary circuit schematic diagram is not provided by the
user, the manufacturer will provide it according to the standard;
• Arrangement drawing of switch cabinet and layout drawing of power
distribution room;
• When the main bus specification does not provide the
requirements, the manufacturer will provide it according to the
standard;
• The surface color of the switch cabinet (the manufacturer’s
standard color is: light bean color);
• If users have other requirements, they can be resolved through
consultation with our factory.
