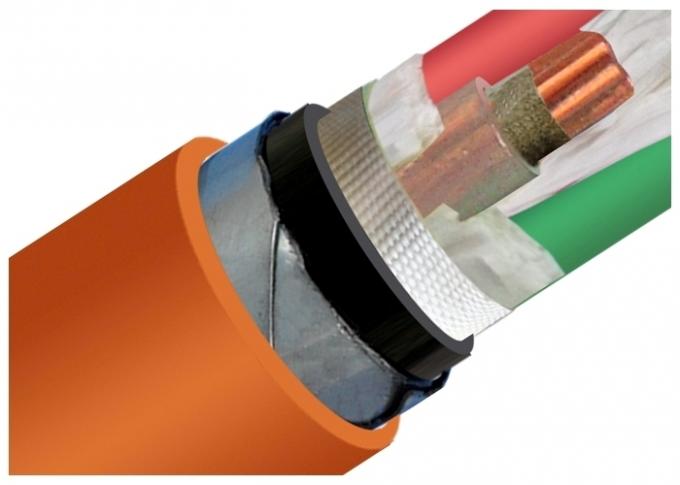

FRC Fire Resistant Low Smoke Halogen Free LSZH SAW Power Cable Wires

Construction:

Stranded (RM) bare copper as per IEC60228
Mica Tape for Fire-Proof
XLPE (cross-linked polyethylene) Insulation
Fillers strip, Yarn, or Paper
Non woven Wrapping tape or Flame Retardant

Extruded PVC Inner Covering

Galvanized Steel Tape Armoured
Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

Application:

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Technical data:

Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
