Product application

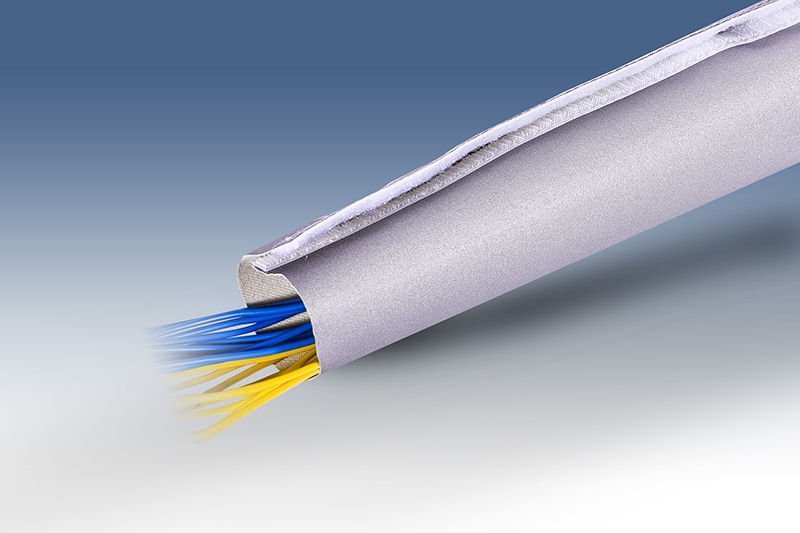

The shielded zipper sleeve (ZPCA) is made of aluminum foil PVC,
tinned copper braided tape, and plastic zipper. This product has
high sealing, flame retardant properties. Products are widely used
in semiconductor equipment, medical equipment, laser equipment and
other industries with high shielding requirements, playing a role
in preventing electromagnetic wave interference.
Material: Aluminum foil +PVC+POM+Tlnned wire
Thickness: 0.22mm (Aluminum foil PVC)
Color: Black
Usage: Use the JP-TUBING tool
Functions: Anti-electromagnetic wave interference, high shielding
performance, high sealing performance
Available Temperature: -15X^-+60^C
1,PVC 2,Shielding material 3, Con^x zipper 4,Concag zipper Tin 5,copper
wire
| specification |
| Model | width(mm) | beam diameter(mm) | length | packaging method |
| APCM-15 | 95 | 15 | | |
| APCM-20 | 110 | 20 | | |
| APCM-25 | 125 | 25 | | |
| APCM-30 | 143 | 30 | | |
| APCM-40 | 174 | 40 | 25M | Paper box |
| APCM-50 | 205 | 50 | | |
| APCM-70 | 262 | 70 | | |
| APCM-100 | 358 | 100 | | |
| | | | |

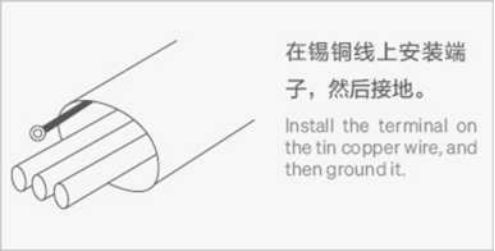

How to use shielding sleeve
1, high strength, high stiffness. Used in the lane of the road
direct burial without adding a concrete protective layer, can roll
fast cable project construction progress.
2. The pipe is flexible and can resist the damage caused by
external pressure and foundation settlement.
3. Corrosion resistance, long service life, can be used in wet and
saline alkali areas.
4, flame retardant, heat resistance is good, can be used for a long
time at a high temperature of 130 degrees without deformation, and
does not burn in case of fire.
5. The inner wall is smooth and does not scratch the cable. The
design adopts the socket connection method to facilitate
installation and connection. The rubber sealing ring seal at the
joint is not only suitable for thermal expansion and contraction,
but also prevents the entry of mud and sand.
Considering the ease of threading of the harness, the case of a
longer period
It is recommended to use open sleeves: self-rolling sleeves, velcro
sleeves, PVC buckle sleeves
Shorter wiring harnesses (less than 1m) may be considered using
closed-mouth casings: PET braided mesh tubes, hollow belts.
Wenzhou Qiuou Electric Co., Ltd., after years of steady
development, has become the industry's leading professional
supplier of cable protection and electromagnetic shielding. At
present, our products include buckle end tape, adhesive end belt,
robot harness protection sleeve, wrapped wire cloth, wrapped wire
pipe, wrapped wire belt, pvc snap sleeve, wire protection sleeve,
velcro sleeve, robot pipe pack, EMC shielded sleeve, aluminum foil
buckle sleeve, shielded electromagnetic interference sleeve,
electromagnetic wave shielding sleeve, shielded mesh sleeve,
self-winding textile sleeve, open sleeve, etc.
Wenzhou Qiupu Electric Co., Ltd. was founded in 2006, Specializing
in the development and production of cable protection and
electromagnetic shielding. At present, the products are shielded
button casing, shielded adhesive casing, shielded zipper casing,
high temperature resistant casing, acid and alkali proof casing,
anti-static casing, wear-resistant casing, industrial robot casing,
button casing, adhesive casing, zipper casing and self-winding
casing. For military industry, semiconductor equipment, high-speed
rail, power equipment, automation control, medical equipment,
welding equipment, elevator and other industries to provide
high-quality cable protection and electromagnetic shielding
solutions. Products have passed ISO9001, ROHS, VTM-0, REACH and
other certifications.
