    220mm 120VAC Backward Curved Centrifugal Fan 550CFM OEM ODM For Medical

    Ask Lasest Price
    Brand Name : QIUPU
    Model Number : Centrifugal Fan
    Certification : TUV,UL,CE,CCC,RoHS
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000PCS/Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

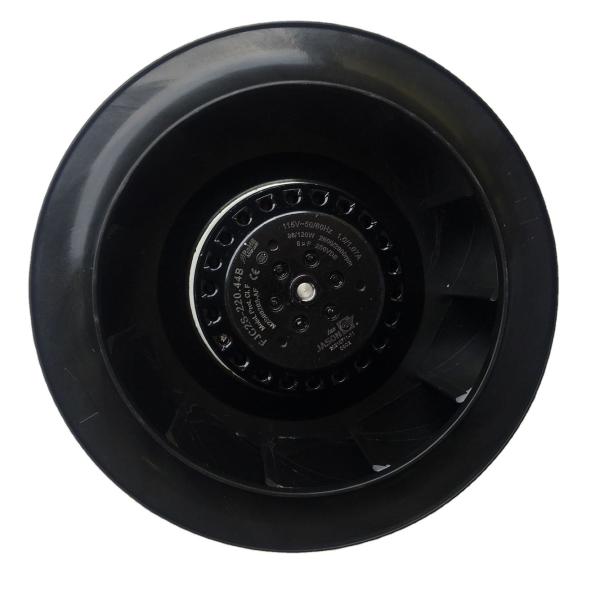

    220mm 120VAC Backward Curved Centrifugal Fan 550CFM OEM ODM For Medical

    Diameter 220mm UL approved 550CFM 110V120VAC Backward Curved Centrifugal Fan OEM ODM Customized for medical and home use

    Specification:

    • Motor Structure: Cage type capacitor structure external rotor motor with automatic recovery thermal protector
    • Blades: Made by injection mould with black plastic PBT+30% glass fiber + VO class of anti-flaming liquid.
    • Bearing Type: Maintain-free ball bearing
    • Insulation Isolation Grade: F Protection Grade: IP44
    • Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz
    • Allowable Ambient Temperature: -40 to +80 Centigrade degree (ball bearings) & (Under unconcretionary)
    • Noise Lever: 69/71dB at normal operation
    • Life: 50,000hours
    • Connection way: UL3266-18 Terminal block connection
    • Unit weight: 1.8kg
    • Certificates: UL E476782,CE,CCC
    Specifications
    CategoryBackward Curved Centrifugal Fan
    TypeC2S-220.44B
    Rated Voltage115V
    Frequency60Hz
    Current1.07A
    Input Power120W
    Speed2900RPM
    Max Air Flow578CFM
    StaticPressure550Pa
    Noise70dB
    Weight1.8KG
    ColorBlack

    Packaging & delivery

    Selling Units:
    Single item
    Single package size:
    25X25X20 cm
    Single gross weight:
    2.500 kg
    Package Type:
     12PCS/CTN or 120pcs/pallet
    Lead time:
    Quantity(pieces)1 - 12 - 200201 - 1000>1000
    Est. time (days)2712To be negotiated
