AC Backward Centrifugal Ventilation Fan Curve Blade 315mm

Ask Lasest Price
Brand Name :	QIUPU
Model Number :	Centrifugal Fan
Certification :	TUV,UL,CE,CCC,RoHS
Price :	To be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000000PCS/Month
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

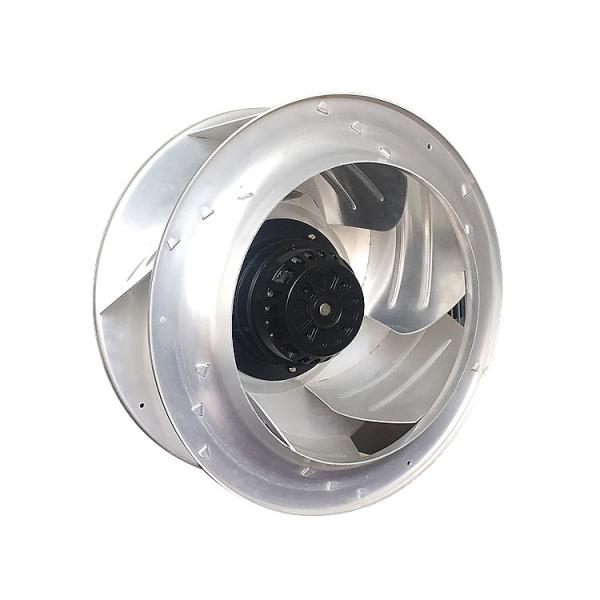

AC Backward Centrifugal Ventilation Fan Curve Blade 315mm

315mm AC Backward Curve Blade Centrifugal Fans Ventilation Fan

Technical Parameter

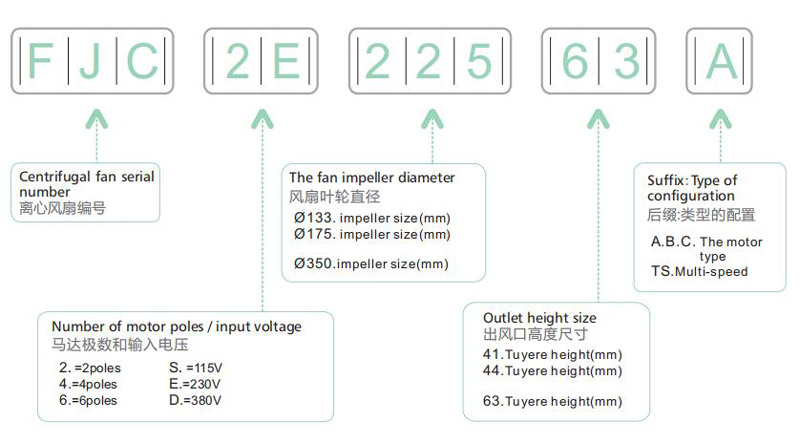

Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.

Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563

When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225

We can customize your unconventional products.

Motor
Cage type capacitor structure external rotor motor

Impeller
Impact molding of aluminium alloy plate

Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +70 (temperature) 0% ~ 95% (humidity)

Protection
Motor Internal with automatic recovery thermal protector

Withstand Voltage
AC 1,800V ,1 min at 0.5mA, 50/60 Hz

Insulation Grade
design according to IEC61858 Grade F,

Protection Grade
IP44

Parameters

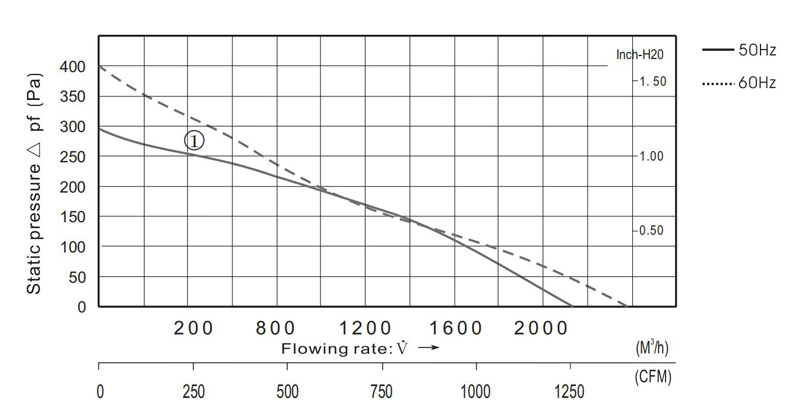

Type	Motor	Rated Voltage	Frequency	current	Power	Speed	Max Air Flow		Static Pressure	Noise	Curve	Capacitor Motor
Type	Motor	V	Hz	(A)	(W)+10%-20%	(min-1)	CFM	m3/h	(Pa)	(dB)	Curve	(μF)
C4S-315.101	M4S10201-AF	115	50	1.16	120	1380	1256	2130	290	59	①	12.0/250
C4S-315.101	M4S10201-AF	115	60	1.45	165	1560	1404	2380	400	62		12.0/250
C4E-315.101	M4E10201-AF	230	50	0.46	101	1380	1256	2130	290	59		3.0/450
C4E-315.101	M4E10201-AF	230	60	0.62	143	1500	1404	2380	400	62		3.0/450
C4D-315.101	M4D10201-AF	380	50	0.40	128	1380	1256	2130	290	59		1.0/630
C4D-315.101	M4D10201-AF	380	60	0.47	170	1540	1404	2380	400	62		1.0/630
C4ED-315.101	M4ED10201-AF	230/400	50	.62/.35	137/135	1360	1256	2130	290	59		-------
C4ED-315.101	M4ED10201-AF	230/400	60	.58/.32	167/170	1500	1404	2380	400	62		-------
