    Fj12032mab Compact Axial Fan With Metal Blades 120mm

    Ask Lasest Price
    Brand Name : QIUPU
    Model Number : Axial Flow Fan
    Certification : TUV,UL,CE,CCC,RoHS
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000PCS/Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    Fj12032mab Compact Axial Fan With Metal Blades 120mm

    compact axial fan fj12032mab with metal blades 120mm

    Technical Parameter

    References are based on the frame dimension, which helps you to quickly select the best choice for your installation.

    Example:
    When your installation space is enough for dimention 120*120*38mm, please choose FJ1203

    When you choose AC 220V, frame size 120x120x38mm, sleeve bearing, plug-in connection, please choose model FJ12032AST

    We can customize your unconventional products.


    Frame
    Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

    Impeller
    Black plastic PBT UL94V-0

    Operation Temperature/Humidity Range: (under unconcretionary state)
    -30℃ ~ +60℃ (temperature), 0% ~ 95% (himidity)

    Protection
    Impedance Protected

    Withstand Voltage
    AC 1,800V , 1 min at 0.5mA, 50/60 Hz

    Insulation System
    design according to IEC61858 Grade B,

    Protection Grade
    IP34

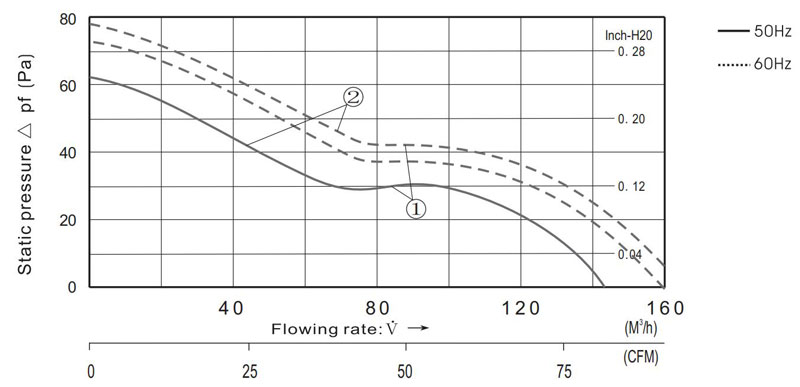

    TypeMotorRated VoltageFrequencycurrentPowerSpeedMax Air FlowStatic PressureNoiseCurveCapacitor Motor
    VHz(A)(W)+10%-20%(min-1)CFMm3/h(Pa)(dB)(μF)
    FJ12031ASM2S6301-SB115500.24182500851455134-----
    600.201528001001706337
    FJ12031ABM2S6301-AB115500.24182500851455134-----
    600.201528001001706337
    FJ12032ASM2E6301-SB230500.12192500851455134-----
    600.10142700951606337
    FJ12032ABM2E6301-AB230500.12192500851455134-----
    600.10142700951606337
    FJ12033ABM2D6301-AB380500.07182500851455134-----
    600.061628001001706337

    Packaging & delivery

    Selling Units:
    Single item
    Single package size:
    25X25X20 cm
    Single gross weight:
    2.500 kg
    Package Type:
     12PCS/CTN or 120pcs/pallet
    Lead time:
    Quantity(pieces)1 - 12 - 200201 - 1000>1000
    Est. time (days)2712To be negotiated
