175mm Backward Curved Centrifugal Fan Air Purification System Parts

Ask Lasest Price
Brand Name :	QIUPU
Model Number :	Centrifugal Fan
Certification :	TUV,UL,CE,CCC,RoHS
Price :	To be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000000PCS/Month
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

175mm Backward Curved Centrifugal Fan Air Purification System Parts

Technical Parameter

Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.

Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563

When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225

We can customize your unconventional products.

Motor
Cage type capacitor structure external rotor motor

Impeller
Black PA nylon one-time injection moulding

Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +80 (temperature) 0% ~ 95% (humidity)

Protection
Motor Internal with automatic recovery thermal protector

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade
design according to IEC61858 Grade F,

Protection Grade
IP44

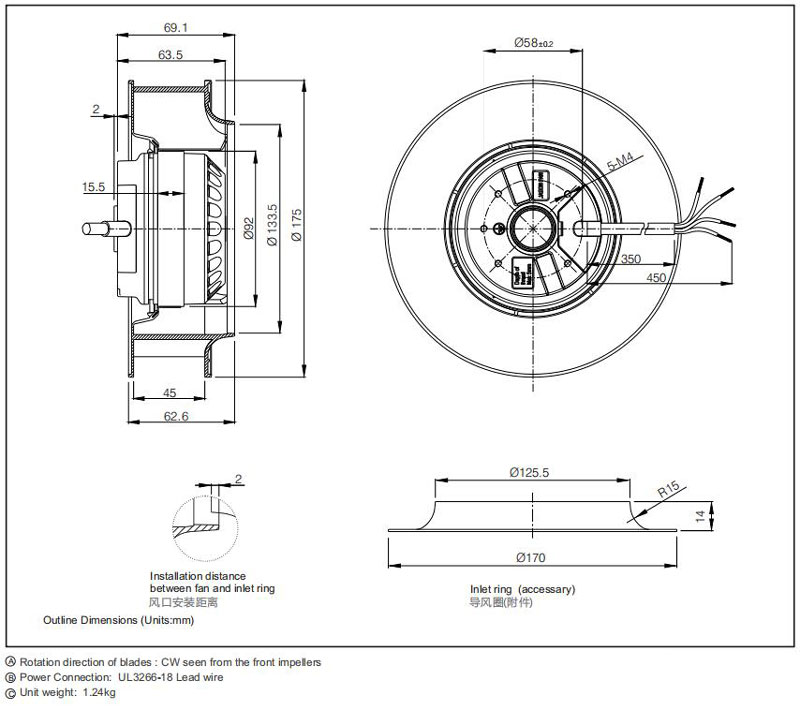

C2E-175.45C

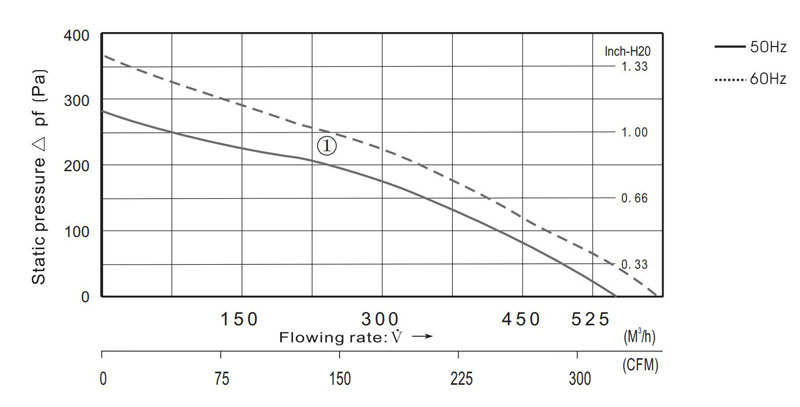

Type	Motor	Rated Voltage	Frequency	current	Power	Speed	Max Air Flow		Static Pressure	Noise	Curve	Capacitor Motor
Type	Motor	V	Hz	(A)	(W) +10% -20%	(min-1)	CFM	m3/h	(Pa)	(dB)	Curve	(μF)
C2S-175.45C	M2S9201-AF	115	50	0.57	56	2500	324	550	280	58	①	5.0/250
C2S-175.45C	M2S9201-AF	115	60	0.53	59	2850	348	590	370	61		5.0/250
C2E-175.45C	M2E9201-AF	230	50	0.27	56	2500	324	550	280	58		1.5/450
C2E-175.45C	M2E9201-AF	230	60	0.28	59	2850	348	590	370	61		1.5/450
C2D-175.45C	M2D9201-AF	380	50	0.16	57	2550	296	500	270	59		0.5/630
C2D-175.45C	M2D9201-AF	380	60	0.17	64	2900	325	550	350	62		0.5/630

C2E-175.45TS

Type	Motor	Rated Voltage	Frequency	current	Power	Speed	Max Air Flow		Static Pressure	Noise	Curve	Capacitor Motor
Type	Motor	V	Hz	(A)	(W)+10%-20%	(min-1)	CFM	m3/h	(Pa)	(dB)	Curve	(μF)
C2E-175.45TS	M2E9201-TS	240	50	0.22	53	2600	296	500	260	62	①	2.0/450
			50	0.20	44	2380	270	459	240	60	②
			50	0.20	41	2140	242	410	210	58	③
