    Enclosure Axial Flow Fan Airflow AC 220V Cooler Industrial Carbon Steel YWF4E 500 Black

    Ask Lasest Price
    Brand Name : QIUPU
    Model Number : Axial Cooling Fan
    Certification : TUV,UL,CE,CCC,RoHS
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000PCS/Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

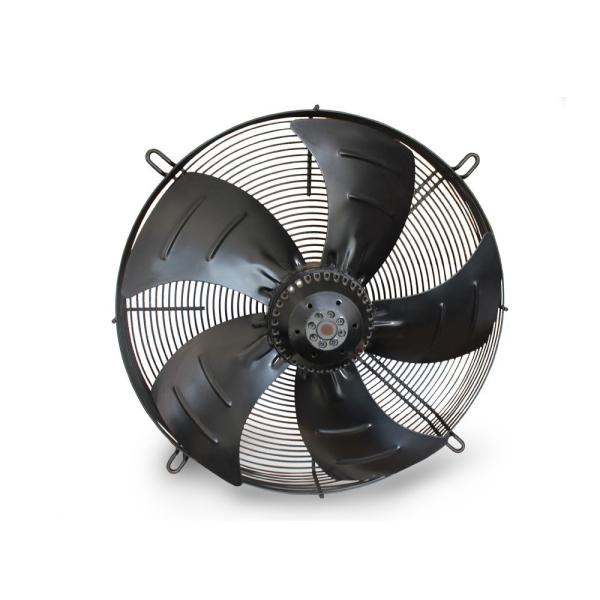

    Enclosure Axial Flow Fan Airflow AC 220V Cooler Industrial Carbon Steel YWF4E 500 Black

    Enclosure Axial Flow Fan Airflow Axial Fan AC 220V Cooler Axial Fan Industrial Carbon Steel YWF4E 500 Black OEM Customized Motor

    Technical Parameter

    Reference based on the size of impeller, which helps you to quickly select the best choice for your installation

    Example:
    When you need fan motor 4 poles, input voltage 230V, impeller diameter Ø 350 mm, please choose FJ4E - 350

    When you need 4 poles, impeller diameter 350 mm, fan needs basket-type protection guard, airflow direction from motor to guard, Please choose FJ4E - 350. FGV

    We can customize your unconventional products.


    Motor
    Cage type capacitor start external rotor motor

    Impeller
    Pressed from metal armor plate, impellers are welded to motor rotor and its surface is black and anti-corrosion

    Fixed Guard
    Steel wire is finished with black paint and anti-corrosion treatment

    Allowable environment temperature and humidity range:(under unconcretionary condition)
    -30℃ ~ +75℃ (temperature) 0% ~ 95% (humidity)

    Protection
    Automatic recovery thermal protection

    Withstand Voltage
    AC 1,800V , 1 min at 0.5mA, 50/60 Hz

    Insulation Grade
    Design according to IEC61858 Grade F,

    Protection Grade
    IP44

    TypeMotorRated VoltageFrequencycurrentPowerSpeedMax Air FlowStatic PressureNoiseCurveCapacitor Motor
    VHz(A)(W)+10%-20%(min-1)CFMm3/h(Pa)(dB)(μF)
    FJ4E-450.FGVM4E10203-AF230501.12245135032505500105688.0/450
    601.503401480356060307571
    FJ4D-450.FGVM4D10203-AF400500.66240135032505500105682.0/630
    600.913401480356060307571
    FJ4ED-450.FGVM4ED10203-AF230/400501.08/.62222/22014003360570012064------
    601.05/.61306/3051600384065007068
    FJ6E-450.FGVM6E10203-AF400500.621329302230378070624.0/450
    600.731681080259044004566
